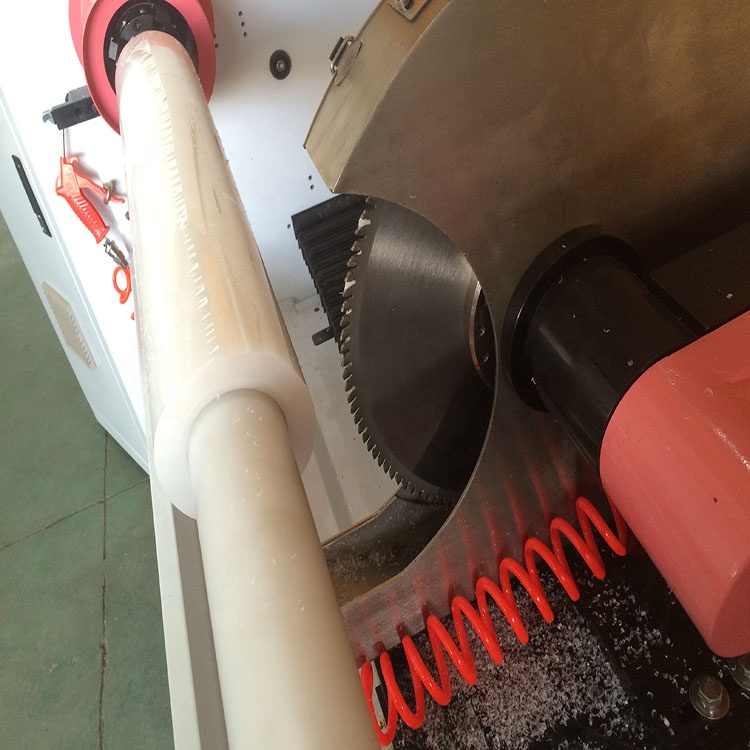

1. Automatic control of PLC system with LCD touch screen control panel, multiple modes for size setting each time & auto changing when cutting. Easy function setting, user-friendly interface.
2. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.
3. AC motors for cutting blade and cutting shaft with inverters speed changing.
4. Positioning system for cutting: servo motor to control more accurate position.
5. Sliding system, high precision liner sliding track and ball screw.
6. Auto cutting angel adjustment can well protect the cutting blade as well as guarantee the cutting edge flatness.
7. Single shaft, single blade.
Technical parameter | Configuration device | Control System | |||
Base paper width | 1600 (mm) | Tension adjustment | Pneumatic brake | Main power | 11kw |
Dia of | 1200 (mm) | Paper loading method | Hydraulic Shaftless support | total weight | 4000kg |
Rewinding diameter | 1200 (mm) | Unloading method | Hydraulic blanking | Main motor | 11kw |
Slitting width | >35 (mm) | Winding method | Gas up outside the closed | Electrical components | Chint /Omron |
Base paper weight | 80- 600g | application tools | 1set | Button/emergency stop | Siemens |
Number of cutters | 18pcs | Cylinder components | Airtac /Tianao | ||
Slitting speed | 1-300 (m/min) | Hydraulic system | Energy /Robicon | ||
Speed control | Frequency control | ||||
Pre-Sales Service
1. Proposing the most suitable scheme and equipment for our clients.
2. Designing and fabricating targeted products according to the special requirements of clients.
3. Training periodically high qualified service technician.
1.Field installation, commissioning and training
2.Video technical support
3.Field maintenance and repair service
4.Online support
NH Paper Machinery Industrial Group is a leading professional paper machine manufacturer in China, which specializes in making machine, paper making machine and all kinds of paper machine components manufacturing. Based on the development of local market. We are growing to professional paper mill solution provider. NH Paper Machinery Industrial Group fully implement the guideline in business-"survival depends on quality and service market rely on price and brand."
Our main products are a full set of new and second-hand paper making equipment with a maximum net with of 6000mm and a working speed of 700m/min. It mainly includes a packaging paper production line with an annual output of 200,000-200,000 tons, a cultural paper production line with an annual output of 1-10 million tons, a tissue paper production line with an annual output of 20,000 tons and various special paper production lines.
Look forward to hearing from you sooner and establishing a long friendly business relationship with you. We promise we will do our best to help you. Besides, welcome you to visit our factory at any time.
According to the process, divided into different workshop. With strict quality control system to ensure the finished product quality.
According to your requirement, there are different consistency slag removal equipment, as different capacity required, there are product customized for you.
We have stable cooperation relationship with our clients.
Forming fabric wire mesh and multi layer felt and and Roll run succesfully in Kraft paper making machine in India!
Specializing in the production of all kinds of mesh and filter，for pressing and paper production in various industries.
This is our new factory where we adopt all new paper making machine.
