You are here: Home » Paper machine & pulp equipment » Pulp equipment and spare parts » Pulp & screen equipment » High concentration slag remover pulp consistency cleaner density impurity cleaner paper pulping equipment for paper mill
Model: NH-ZSC-II-1
Brand: NH
Code: 8439910000
capacity:
Availability:

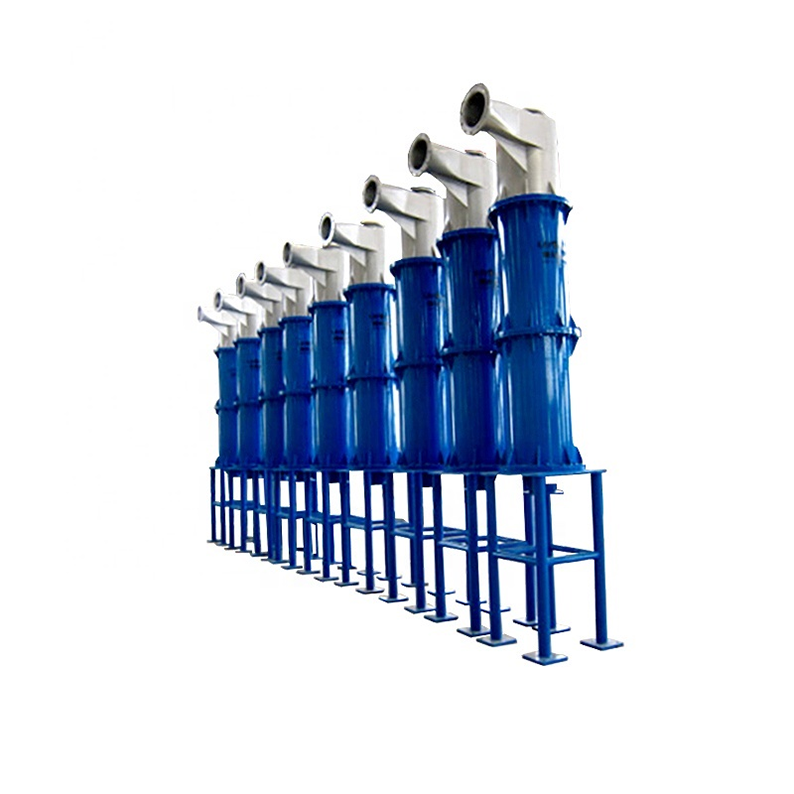

High concentration slag remover pulp consistency cleaner density impurity cleaner paper pulping equipment for paper mill

Recycled paper pulp making machine cleaner equipment heavy impurity cleaner utilizes the difference in specific gravity between the fibers and the impurities to separate the heavy impurities from the pulp to achieve the purpose of purifying the pulp. The equipment can be used in a wide range of applications, both for the rough cleaning of high-energy pulp and for the selective purification of low-concentration pulp before the paper machine. It can be used in the production of chemical pulp, semi-chemical pulp, and in the production of mechanical pulp waste pulp. It is widely used in the production of boxboard paper, corrugated paper, cultural paper, newsprint and toilet paper, especially for purifying waste paper pulp and semi-chemical method. The straw effect is better .
Product Description

Recycled paper pulp making machine cleaner equipment heavy impurity cleaner


型号 Model ZSC-II-1 ZSC-II-2 ZSC-II-3 ZSC-II-4 ZSC-II-5 ZSC-II-6 ZSC-II-7
生产能力 (I/U)
Production capacity
10 - 20 20 - 40 40 - 60  50 - 70 60 - 80 80 - 110 100 - 130
通过量 (m/min)
Throughout
0.8 - 0.9 1 - 1.2  1.5 - 2.0 2.0 - 2.5 2.5 - 3.0 3.0 - 3.5 3.5 - 4.5
浆料浓度 (%)
Consistency
0.8 - 5
进浆压力(Mpa)
Pressure of ZSC pulp
0.15 - 0.35
出浆压力 (Mpa)
Pressure of output pulp
0.1 - 0.25
冲洗压力 (Mpa)
Pressure of washing water
进浆压力 + 0.02MPa ( Pressure of inflow pulp + 0.02 Mpa )
空白背景1
Advantage :

1.Simple structure, small occupied area, large production capacity, convenient operation, no clogging of the slag discharge port, high purification efficiency;

2. Slurry passes through the slag remover only once, without the tail slurry processing equipment, and the fiber loss is zero.

3. The cone is wear-resistant, has a long service life, no transmission, no power is required to install it in the slurry conveying process, and the slag removal effect can be achieved.

 features

Recycled paper pulp making machine cleaner equipment heavy impurity cleaner utilizes the difference in specific gravity between the fibers and the impurities to separate the heavy impurities from the pulp to achieve the purpose of purifying the pulp. The equipment can be used in a wide range of applications, both for the rough cleaning of high-energy pulp and for the selective purification of low-concentration pulp before the paper machine. It can be used in the production of chemical pulp, semi-chemical pulp, and in the production of mechanical pulp waste pulp. It is widely used in the production of boxboard paper, corrugated paper, cultural paper, newsprint and toilet paper, especially for purifying waste paper pulp and semi-chemical method. The straw effect is better .

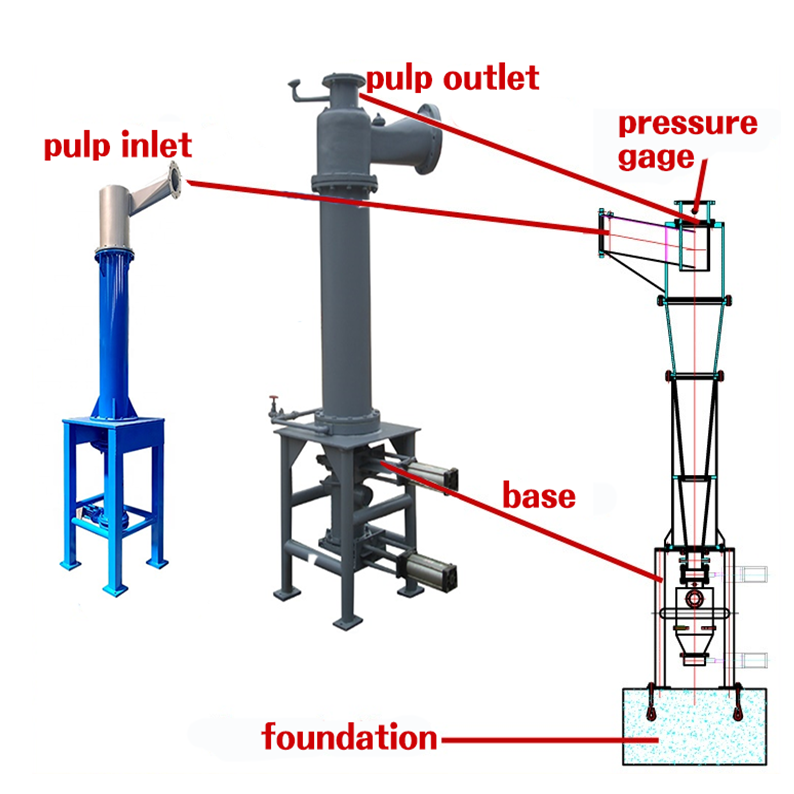

Product detail

              细节合成

Working site

生产车间2             生产车间 合成

Service

Pre-Sales Service

1.Proposing the most suitable scheme and equipment for our clients.
2.Designing and fabricating targeted products according to the special requirements of clients.
3.Training periodically high qualified service technician.

After-Sales Service

1.Field installation, commissioning and training

2.Video technical support

3.Field maintenance and repair service

4.Online support

Packaging and delivery

       发货合成

                 运输

About us



NH Paper Machinery Industrial Group is a leading professional paper machine manufacturer in China, which specializes in making machine, paper making machine and all kinds of paper machine components manufacturing. Based on the development of local market ,we are growing to professional paper mill solution provider. NH Paper Machinery Industrial Group fully implement the guideline in business-"survival depends on quality and service ,market rely on price and brand."

Our main products are a full set of new and second hand paper making equipment with a maximum net with of 6000mm and a working speed of 700m/min.It mainly includes a packaging paper production line with an annual output of 200,000-200,000 tons, a cultural paper production line with an annual output of 1-10 million tons, a tissue paper production line with an annual output of 20,000 tons and various special paper production lines.

Look forward to hearing from you sooner and establishing a long friendly business relationship with you . We promise we will do our best to help you .Besides ,welcome you to visit our factory at anytime.

Accroding to the process, divided into different workshop .With strict quality control system to ensure the finished product quality .

We have stable cooperation relationship with our clients.
