Model: NH-O3
Brand: NH
Code: NH-O3

O type waste paper and plastic energy-saving hydropulper paper-plastic separator pulp equipment with low power consumption

The energy-saving hydraulic pulper is a high-efficiency and energy-saving paper-plastic separator developed by our company based on the absorption and synthesis of the latest foreign disintegration and separation technology using the principle of hydraulic vortex and mechanical engineering.
Product Description

Description:

The upper drive energy-saving hydraulic pulper is a high-efficiency and energy-saving paper-plastic separator developed by our company based on the absorption and synthesis of the latest foreign disintegration and separation technology using the principle of hydraulic vortex and mechanical engineering. It is suitable for our country's national conditions. . Mainly used for the disintegration and separation of paper-plastic composite materials. Use waste paper-plastic composite raw materials to produce higher whiteness plastics. This machine mainly has the advantages of large production capacity, low power consumption, and convenient use and maintenance.

The machine is designed according to the principle of hydraulic vortex. The rotor adopts a mechanism combined with spiral flying knives. When the rotor rotates, the paper-plastic composite material makes a radial circular motion to promote the pulp to accelerate hydration and decomposing, and achieve the purpose of separating from the plastic. . During operation, the paper-plastic composite raw materials are always in a high-concentration state to defuse the fibers, thereby separating the fibers from the plastics to achieve the purpose of recycling. In addition, the rotor is a high-efficiency composite rotor with weak shearing effect. The plastic only has a peeling effect and will not form fine chips, creating favorable conditions for slurry screening.


Structure and work principle:

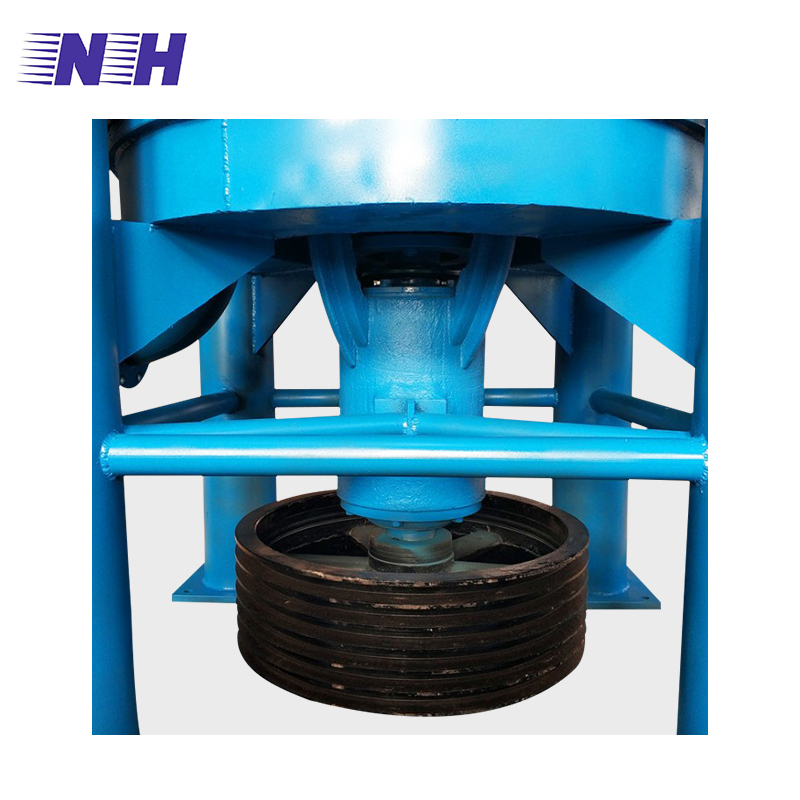

The hydraulic pulper is mainly composed of a tank, a transmission device, a rotor, a sieve plate, and a column. The transmission adopts the upper transmission, and its main disintegration mechanism is the rotor. When the rotor rotates, the raw materials move radially, and the composite rotor rotates at a high speed. It flips upward from the side of the tank to accelerate the disintegration of the pulp in the tank. The slurry in the tank is driven by hydraulic power and the mechanical action of the rotor. Rub each other to achieve the purpose of separating slurry and plastic. In addition, due to the weak shearing force of the rotor, it only peels off the light substances in the waste paper (such as plastic film) without forming debris, which facilitates the screening of the slurry.


Parameter:

Item/Model

NH-O3

NH-O5

NH-O8

NH-O10

NH-O15

NH-O20

NH-O30

Nominal volume m3

3

5

8

10

15

20

25

Capacity t/d

9-12

13-18

20-30

30-45

45--60

60-80

90-120

Pulp concentration %

12±2

Power

55

75

110

160

220

310

400
