You are here: Home » Industrial mesh belt » Paper making mesh belt » Paper mill and Sewage treatment washing and bleaching plant polyester forming filtering dewatering mesh belt
Model: 021002
Brand: NH
Code: 021002

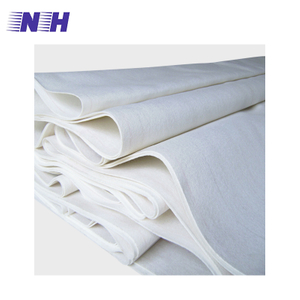

Paper mill and Sewage treatment washing and bleaching plant polyester forming filtering dewatering mesh belt

Application : pulping, sludge dewatering, straw pulp board, black liquor extraction, pulp washing machine, bleaching machine
Product Description

The single layer forming mesh is the simplest forming mesh. It includes four different forms:

1) Second heddles (one up and one down) : its design is mainly used in sewage treatment plants, sludge dehydrators, etc.

2) Three heddles (one up and two down) : mainly used for sludge dewatering machine, washing machine and bleaching machine

3) Four heddles (one up and three down) : mainly used in various paper machines

4) Five-heddles (one up and four down) : is mainly used to produce all kinds of kraft paper, tissue paper, writing paper, printing paper and other papermaking equipment that require high dehydration.


Feature:

Simple structure

High fiber support index

Square hole

Good dehydration performance

Easy to thread the paper


Product superiority:

Good retention

Strong drainage


Mainly used in the paper mill long net paper production paddle paper network, wood-based panel plant pavement machine belt, food drying, material screening, environmental protection and other industries use.

Type

Filament diameter   (mm)

Density (root/cm)

Tensile strength

Weight

Kg/m2

Thickness

mm

Mesh

Warp/Weft

mm

Aperture

Warp/Weft

mm

Air permeability

M3/m3h

Air permeability

CFM 127Pa

Open rate

Warp

Weft

Warp

Weft

Surface

Joint

021002

1

1

2.85

2.65

1600

650

0.6

1.85

7.1/6.73

2.5/2.77

32000

2000

52.55

031002

1

1

3.2

3.25

1600

650

0.8

1.86

8.1/8.2

2.12/2.07

25600

1600

45.9

03902

0.9

0.9

3.9

3.65

1600

650

0.55

1.7

9.6/9.3

1.66/1.83

20000

1250

46.58

04902

0.9

0.9

4.65

4.7

1600

650

0.95

1.66

12/12

1.25/1.22

17600

1170

33.55

04602

0.5

0.6

4.4

5.2

1600

650

0.58

1.23

12/13.2

1.72/1.32

19000

1187

53.32

05602

0.6

0.6

5.9

5.6

1600

650

0.62

1.1

14.98/14.2

1.09/1.18

18000

1125

42.89

05802

0.8

0.8

5.1

5.3

1600

650

0.89

1.48

13/13.5

1.16/1.08

15840

990

34.09

06652

0.65

0.65

7.4

6.8

1600

650

0.65

1.19

18.8/17.3

0.7/0.82

14400

1190

28.96

06802

0.8

0.8

6.6

6.5

1600

650

0.85

1.45

16.8/16.5

0.72/0.73

11600

725

22.65

06702

0.7

0.7

7

7

1600

650

0.77

1.3

17.8/17.8

0.72/0.72

11000

690

26.01

07802

0.8

0.8

7.8

7

1600

650

1.1

1.45

20.3/18

0.32/0.54

5920

370

16.54

09502

0.5

0.5

9.7

10.3

1600

650

0.5

0.9

25/26.2

0.53/0.47

10100

634

24.97

12502

0.5

0.5

13.5

8.5

1600

650

0.63

0.88

34.3/21.6

0.24/0.65

6500

6280

18.68

09452

0.45

0.45

10

8.6

1600

650

0.89

0.95

23.8/23.1

0.55/0.71

15570

970

33.71

08603

0.5

0.6

9.4

9

1600

650

0.75

0.47

24.13/21.8

0.5/0.65

9000

560

24.38

06803

0.7

0.8

7

5.5

1600

650

0.65

1.53

17.8/14

0.72/1

16000

1000

28.56

09603

0.5

0.6

10.5

9.2

1600

650

0.65

1.05

26.67/23.4

0.45/0.48

8300

518

44.87

07803

0.8

0.8

8

8

1600

650

1.15

1.66

20.3/20.3

0.45/0.45

6400

400

16.26

07903

0.8

0.9

7.6

6.5

1600

650

1.25

1.76

19.3/16.5

0.51/0.63

9184

574

12.96
