Model: 17201
Brand: NH
Code: NH-17201

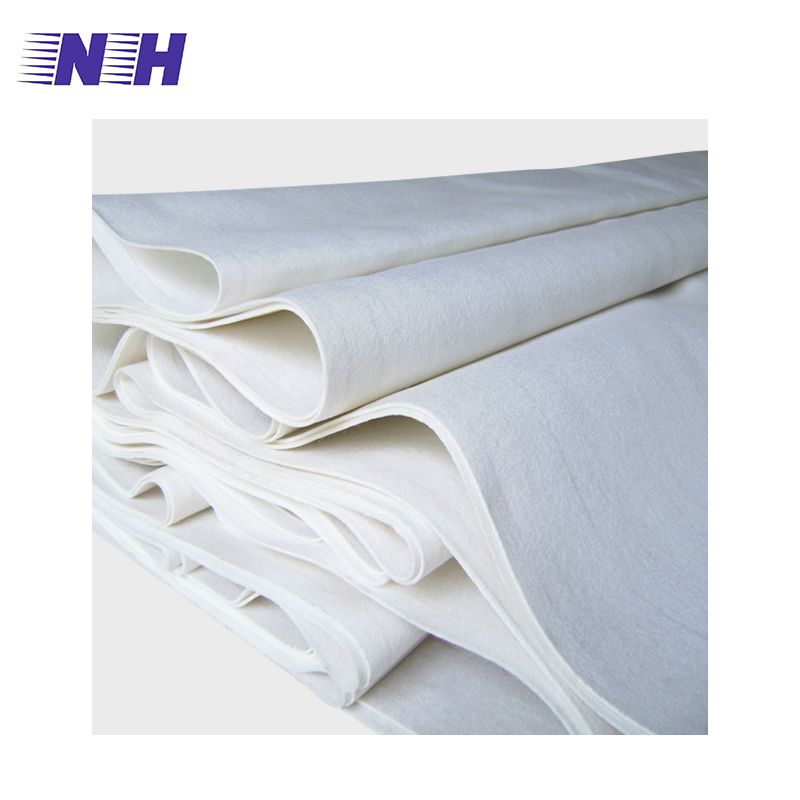

Paper mill bottom top press conveying papermaking blanket felt for making kinds of cultural kraft speical and tissue paper

The tissue structure of papermaking felt is set according to different paper machines, different parts of use, and different paper types. The fiber layer is laid in layers with chemical fibers of different thicknesses. It has the characteristics of good water filterability, low elongation, easy washing, light blanket marks, can effectively reduce groove marks, and long service life. It is widely used in various paper machines to produce various papers.

Product Description

Function of paper mill bottom top press conveying papermaking blanket felt :


1. Filtration: As a dehydrating medium, when the web is dewatered in the vacuum and press areas, the papermaking felt absorbs and filters out the moisture from the sheet

2. Smoothing effect : In the paper transfer and dehydration process, the paper surface from the formation and modification of the role.

3.The role of the conveyor belt : The web is conveyed through the press section to the drying section, and the driven roller and the cage are driven.


Parameter:

Item

P.N

Gram weight

Structure

Application

Note

1

17201

650—900

Single layer

Suit for cultural,technological,

and industrial paper as a blanket

No blanket printing, fine and uniform blanket surface,good initial adaptability

2

17221

650—950

Single layer

Suit for cultural,technological,

and industrial paper as a blanket

No blanket printing, fine and uniform blanket surface,good initial adaptability

3

37201

650—900

Single layer

Suit for cultural,technological,

and industrial paper as a blanket

No blanket printing, fine and uniform blanket surface,good initial adaptability

5

37221

650—950

Single layer

Suit for cultural,technological,

and industrial paper as a blanket

No blanket printing, fine and uniform blanket surface,good initial adaptability

6

17420

900—1200

Single layer

Used as blankets to produce special papers such as tissue paper

No blanket printing, fine and uniform blanket surface,good initial adaptability

7

47420

750—1200

Single layer

Used as a press blanket to produce special papers such as technical paper and tissue paper

No blanket printing, good water filtration, fine and smooth blanket surface, long life

8

47520

1100—1500

Double layer

Used as a press blanket to produce various special papers, etc.

No blanket printing, high line pressure resistance, good water filtration, dimensional stability, abrasion resistance, long life
