Polyester antistatic density shavings board MDF heating conveying forming belt

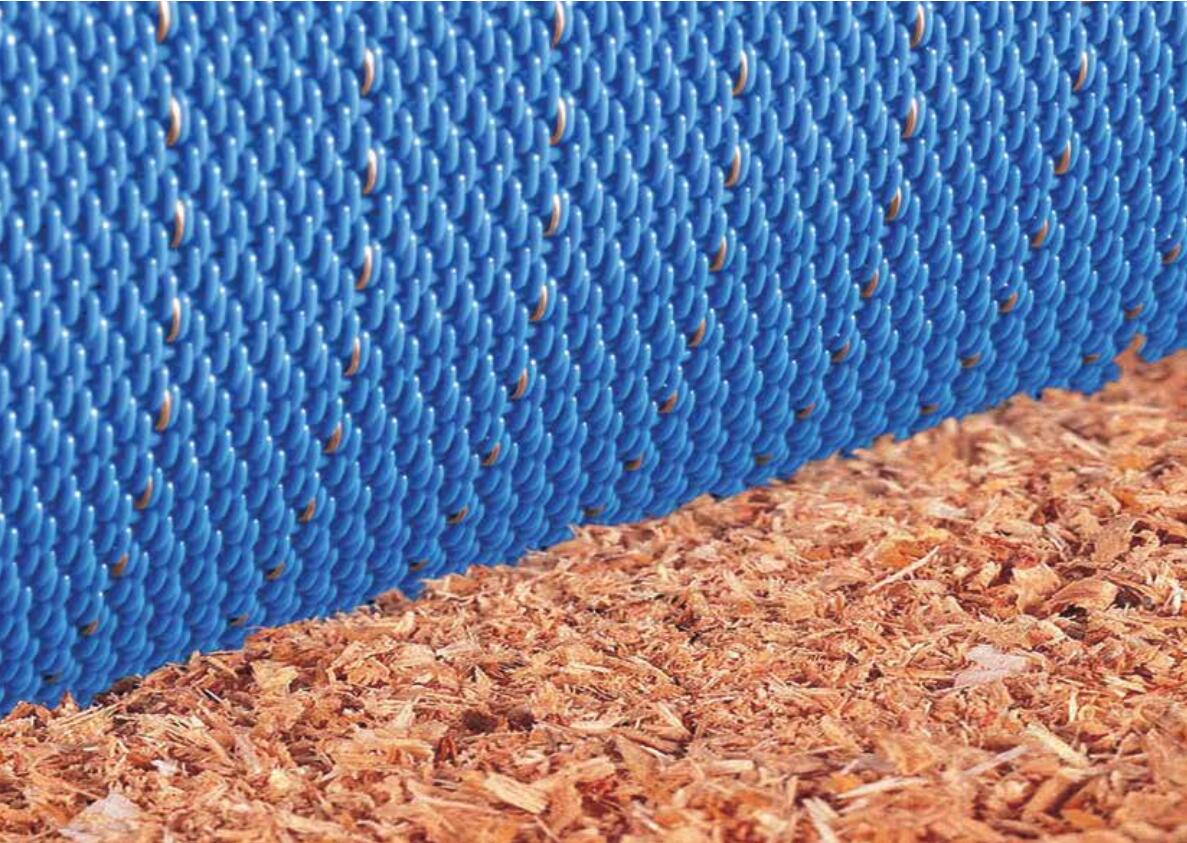

MDF particleboard paving heating conveying forming belt is characterized by high wear resistance, strong antistatic performance, and high strength. Polyester density shavings board MDF heating conveying forming belt are mainly used in the production industry of MDF, and can be used as pre-pressing ventilation belt, slab heating belt, entrance belt, paving belt, etc. In the production process, because of its unique antistatic effect, it can effectively increase the service life of the mesh belt, increase the efficiency of customers, save costs, and avoid fires to a certain extent, and has been recognized and praised by related industries. Polyester antistatic density shavings board MDF heating conveying forming belt can also be used in industries such as environmental protection machinery rubber transportation.
Polyester antistatic density shavings board MDF heating conveying forming belt performance: acid and alkali resistant, high temperature resistant, antistatic, high density and high strength.
Antistatic principle: The equipment using polyester mesh will generate friction static electricity when running at high speed. The antistatic polyester mesh is covered with conductive fibers, which can release static electricity generated by friction and play an antistatic effect.
Polyester antistatic density shavings board MDF heating conveying forming belt is mainly used for chemical fiber, dry papermaking, fiberboard continuous press mesh belt, and antistatic principle: the equipment using polyester mesh will generate friction static electricity when running at high speed, and the antistatic polyester mesh has conductive inside Fiber can release static electricity generated by friction, thereby playing an antistatic effect. Continue the pre-pressing machine mesh belt, and the material needs to be conductive and antistatic industry.
Model | Diameter mm | Density | Strength (N/cm) | Weight Kg/m2 | Thickness mm | Air permeability (CFM@125Pa) | Electric conductivity Ω·m | ||
Warp | Weft | Warp | Weft | ||||||
14804 | 0.65 | 0.8 | 14.8 | 7.2 | 2000 | 1.6 | 1.95 | 430 | 5*10m³ |
31505 | 0.4 | 0.5 | 33 | 9 | 1600 | 0.8 | 1.3 | 1190 | 5*10m³ |
14804-1 | 0.65 | 0.5 | 14.8 | 7.2 | 2000 | 1.6 | 1.95 | 430 | 5*10m³ |
14708 | 0.64 | 0.7 | 15 | 8 | 2000 | 1.03 | 1.78 | 700 | 5*10m³ |
12708 | 0.46*0.68 | 0.7 | 14.1 | 7.3 | 2000 | 0.9 | 1.76 | 500 | 6*10m³ |
4106-3 | 0.5 | 0.3/0.7 | 22.8 | 2200 | 1.5 | 1.8 | 500 | 6*10m | |
Forming fabric wire mesh and multi layer felt and and Roll run succesfully in Kraft paper making machine in India!
Specializing in the production of all kinds of mesh and filter，for pressing and paper production in various industries.
This is our new factory where we adopt all new paper making machine.
