You are here: Home » Industrial mesh belt » Paper making mesh belt » Polyester spiral dryer belt paper mill drying mesh belt for packaging cultural board paper and pulp board
Model: 5080A2
Brand: NH
Code: 5080A2

Polyester spiral dryer belt paper mill drying mesh belt for packaging cultural board paper and pulp board

Mainly used for paper drying in paper mills, textile printing and dyeing products, suitable for speeds below 600m/s. Suitable for bottom belt of horizontal belt vacuum washing machine (replace rubber belt).
Product Description

Product description:

The polyester spiral dryer fabric series is suitable for drying packaging paper, cultural paper, board paper and pulp board with large basis weight. It is widely used in papermaking, coal mine, food, medicine, printing and dyeing and rubber products industries. It can also be used as a conveyor belt and a mesh belt for compound machines.



The polyester spiral dry mesh has the advantages of large air permeability, flat mesh surface, arbitrarily detachable connection, good strength and long service life. The special material spiral dry net also has the characteristics of high temperature resistance, high wear resistance, and aging resistance.

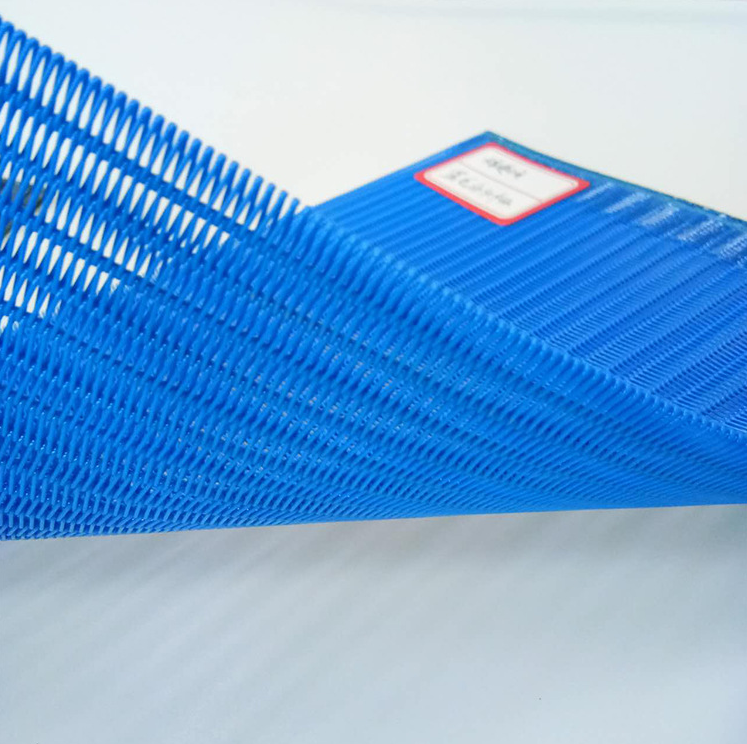

Polyester spiral dry mesh is made of polyester monofilament wound into a spiral loop, and the spiral loops are connected together with wefts to form a spiral mesh. The spiral mesh has a smooth surface, good air permeability, high temperature resistance, and its own interface. It is widely used In the drying of the paper industry, the production of composite fabrics, the drying and conveying of food and medicine, the emergence of spiral nets effectively guarantees the continuous production of modern industrial equipment and greatly improves production efficiency.


Classification:

Big loop spiral dryer belt

Middle loop spiral dryer belt

Small loop spiral dryer belt


Features:

Large air permeability, easy repair, smooth mesh surface, long service life.


Parameter:

Type

Spiral loop width mm

Filament diameter mm

Tensile strength

N/cm

Weight

Kg/m2

Thickness

mm

Air permeability m3/m3h

Air permeability CFM 127/Pa

Spiral ring monofilament mm

Connection wire

mm

Filler material monofilament

Small loop

5080A2

5.2

0.5

0.8

0.6*3

1800

1.5

2.1

4480

280

Middle loop

6890A2

8

0.68

0.9

0.8*4

2000

2.0

2.45

6080

380

Middle loop

6890B1

7.15

0.68

0.9

0.9*3

2000

1.9

2.45

5760

360

Middle loop

6890B2

7.15

0.68

0.9

0.8*3

2000

1.85

2.45

19000

1188

Middle loop

6890B3

6.48

0.68

0.9

2.1*0.8

2000

1.8

2.45

14000

875

Middle loop

6890B4

8.3

0.68

0.9

2.4*0.88

2000

1.85

2.45

19000

1188

Middle loop

6890B5

10

0.68

0.9

Conductive carbon filament

2000

1.6

2.45

20000

1250

Big loop

9090A2

8

0.9

0.9

0.9*3

2300

2.3

3.03

7500

468

Big loop

90110A2

10

0.9

1.1

1*4

2000

2.4

3.15

6240

390

PA90110A1

10

0.9

1.1

1.2*3

2000

2.25

3.15

6240

390

Big loop

10090A2

8

1

0.9

1*3

2000

2.5

3.6

5000

315

Big loop

120130A2

1.2

1.2

1.3

1.2*3

2600

2.85

4.3

7500

468
