You are here: Home » Industrial mesh belt » Paper making mesh belt » Stable And Fine Filtration Performance Paper Mill Stainless Steel Cylinder Mold Wire Mesh From Manufacturer
Model: 60*60
Brand: NH
Code: NN-60

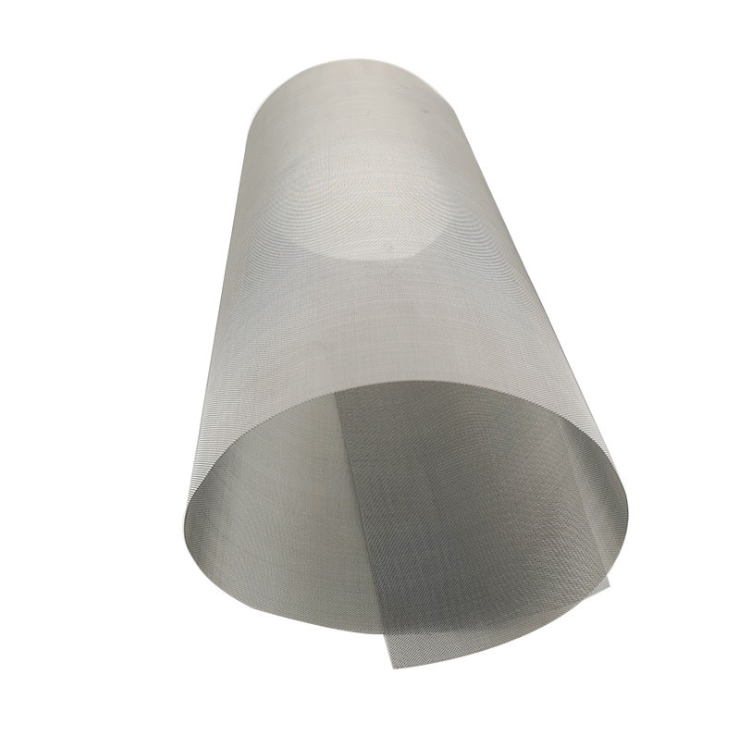

Stable And Fine Filtration Performance Paper Mill Stainless Steel Cylinder Mold Wire Mesh From Manufacturer

Stainless Steel wire mesh used for screening and filtering under acid and alkali environmental conditions, as a mud screen in the petroleum industry, as a screen filter in the chemical and chemical fiber industry, and as a pickling screen in the electroplating industry.

Product Description

Weaving method: plain weave, twill weave, dense weave, the dense weave net includes plain weave-dense weave, and twill-dense weave.

1. Plain weave stainless steel mesh: It is the most common weaving method, the main feature is the same density of wire diameter in warp and weft.

2. Stainless steel square mesh is suitable for petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries. Stainless steel wire is woven into various specifications of mesh and cloth, which has good acid, alkali and high temperature resistance. Strong tensile strength and abrasion resistance.

3. Stainless steel dense mesh material: stainless steel wire weaving: plain weave stainless steel dense mesh, twill weave stainless steel dense mesh, bamboo flower woven stainless steel dense mesh, contrast woven stainless steel dense mesh. Performance: It has the characteristics of stable and fine filtration performance.


Stainless steel mesh is classified by weaving:

1. Plain weave

2. Twill weave

3. Plain Dutch weave

4. Twill Dutch weave

5. Stainless steel wire mesh is divided into plain weave and twill weave. The specification of stainless steel wire mesh is 1 mesh-635 mesh.



Material: SUS302, 304, 316, 304L, 316L, 321 stainless steel wire

Performance: With acid resistance, alkali resistance, temperature resistance, wear resistance and other properties

Application: used for screening and filtering under acid and alkali environmental conditions, as a mud screen in the petroleum industry, as a screen filter in the chemical and chemical fiber industry, and as a pickling screen in the electroplating industry.

Mesh

Dimaterial of wire

Aperture

Open area

Net weight (lbs) /100 square feet

inch

mm

Inch

mm

1x1

0.080

2.03

0.920

23.37

84.6

41.1

2X2

0.063

1.60

0.437

11.10

76.4

51.2

3X3

0.054

1.37

0.279

7.09

70.1

56.7

4X4

0.063

1.60

0.187

4.75

56.0

104.8

4X4

0.047

1.19

0.203

5.16

65.9

57.6

5X5

0.041

1.04

0.159

4.04

63.2

54.9

6X6

0.035

0.89

0.132

3.35

62.7

48.1

8X8

0.028

0.71

0.097

2.46

60.2

41.1

10X10

0.025

0.64

0.075

1.91

56.3

41.2

10X10

0.020

0.51

0.080

2.03

64.0

26.1

12X12

0.023

0.584

0.060

1.52

51.8

42.2

12X12

0.020

0.508

0.063

1.60

57.2

31.6

14X14

0.023

0.584

0.048

1.22

45.2

49.8

14X14

0.020

0.508

0.051

1.30

51.0

37.2

16X16

0.018

0.457

0.0445

1.13

50.7

34.5

18X18

0.017

0.432

0.0386

0.98

48.3

34.8

20X20

0.020

0.508

0.0300

0.76

36.0

55.2

20X20

0.016

0.406

0.0340

0.86

46.2

34.4

24X24

0.014

0.356

0.0277

0.70

44.2

31.8

30X30

0.013

0.330

0.0203

0.52

37.1

34.8

30X30

0.012

0.305

0.0213

0.54

40.8

29.4

30X30

0.009

0.229

0.0243

0.62

53.1

16.1

35X35

0.011

0.279

0.0176

0.45

37.9

29.0

40X40

0.010

0.254

0.0150

0.38

36.0

27.6

50X50

0.009

0.229

0.0110

0.28

30.3

28.4

50X50

0.008

0.203

0.0120

0.31

36.0

22.1

60X60

0.0075

0.191

0.0092

0.23

30.5

23.7

60X60

0.007

0.178

0.0097

0.25

33.9

20.4

70X70

0.0065

0.165

0.0078

0.20

29.8

20.8

80X80

0.0065

0.165

0.0060

0.15

23.0

23.2

80X80

0.0055

0.140

0.0070

0.18

31.4

16.9

90X90

0.005

0.127

0.0061

0.16

30.1

15.8

100X100

0.0045

0.114

0.0055

0.14

30.3

14.2

100X100

0.004

0.102

0.0060

0.15

36.0

11.0

100X100

0.0035

0.089

0.0065

0.17

42.3

8.3

110X110

0.0040

0.1016

0.0051

0.1295

30.7

12.4

120X120

0.0037

0.0940

0.0064

0.1168

30.7

11.6

150X150

0.0026

0.0660

0.0041

0.1041

37.4

7.1

160X160

0.0025

0.0635

0.0038

0.0965

36.4

5.94

180X180

0.0023

0.0584

0.0033

0.0838

34.7

6.7

200X200

0.0021

0.0533

0.0029

0.0737

33.6

6.2

250X250

0.0016

0.0406

0.0024

0.0610

36.0

4.4

270X270

0.0016

0.0406

0.0021

0.0533

32.2

4.7

300X300

0.0051

0.0381

0.0018

0.0457

29.7

3.04

325X325

0.0014

0.0356

0.0017

0.0432

30.0

4.40

400X400

0.0010

0.0254

0.0015

0.370

36.0

3.3

500X500

0.0010

0.0254

0.0010

0.0254

25.0

3.8

635X635

0.0008

0.0203

0.0008

0.0203

25.0

2.63
