Availability: | |
---|---|

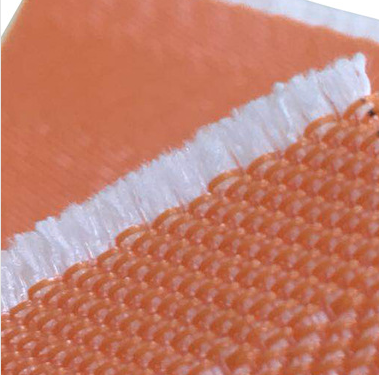

Vacuum belt press filter polyester fruit juice press conveyor mesh belt acid and alkali wear resistance and high temperature resistance
Vacuum belt press filter polyester fruit juice press conveyor mesh belt is suitable for squeezing concentrated fruit juice and other special industries, has the following characteristics:
1. The mesh belt of the belt filter press has high tensile strength, strong wrinkle resistance, uniform monofilament on the mesh surface, and flexibility

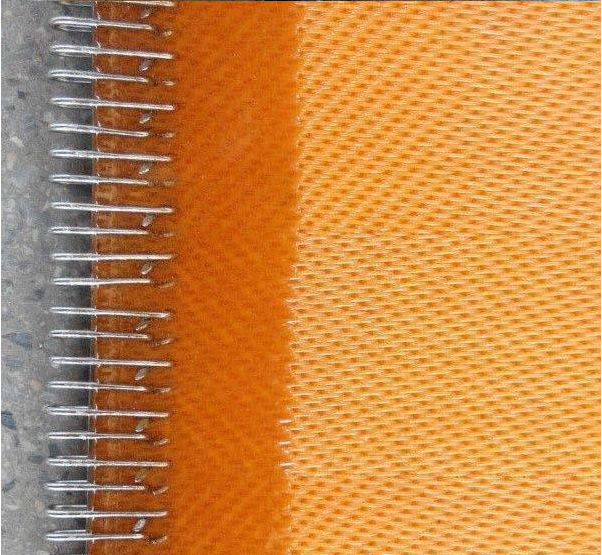

2. The gluing part of the mesh belt joint of the belt filter press is excellent in workmanship and imported latex, which is thin and not easy to fall off. The joint reed is relatively thin, strong and wear-resistant. The thickness of the interface is even and thin, and it is not easy to damage the scraper.
3. The glue used on both sides of the beer lees treatment filter belt is imported latex, which is soft and uniform, not easy to fall off.
4. The surface of the filter belt is smooth, the mud cake is easy to peel off, and the filter belt is easy to wash
5. The belt filter press is not easy to be deformed in the radial direction, no arching, and no wrinkles. Long service life It has the characteristics of acid resistance, alkali resistance, abrasion resistance, and high temperature resistance (can be operated for a long time in an environment of 180°C). Filter belt performance: The filter cake is thick and easy to peel off. Stable shape, no deformation, no deviation, no pleating, high tensile strength, strong acid and alkali resistance. Can withstand high and low temperatures. Good air permeability. The tension of the filter belt is generally controlled at 0.3-0.7MPa, and the commonly used value is 0.5MPa. The walking speed of the filter belt is 1-9m/min. Different specifications and sizes can be customized for production.
6. Polyester filter press belt is widely used in sludge dewatering in municipal sewage plants, paper mills, printing and dyeing plants, chemical plants, electroplating plants, pharmaceutical plants, food plants, ceramic plants, mining and other industries.
Model | Diameter mm | Density | Strength (N/cm) | Air permeability (m3/h) | ||
Warp | Weft | Warp | Weft | |||
16903 | 0.7 | 0.9 | 16 | 5.33 | ≥2200 | 7894±500 |
22903 | 0.5 | 0.9 | 22 | 5.33 | ≥2000 | 6800±500 |
26806 | 0.5 | 0.8 | 27 | 8.5 | ≥2100 | 5120±500 |
15905 | 0.9 | 0.9 | 17 | 4.8 | ≥4500 | 6741±500 |
151105 | 0.9 | 1.1 | 16 | 4.8 | ≥5000 | 6749±500 |
121104 | 0.9 | 1.1 | 12 | 3.8 | ≥3600 | 8610±500 |
Vacuum belt press filter polyester fruit juice press conveyor mesh belt acid and alkali wear resistance and high temperature resistance
Vacuum belt press filter polyester fruit juice press conveyor mesh belt is suitable for squeezing concentrated fruit juice and other special industries, has the following characteristics:
1. The mesh belt of the belt filter press has high tensile strength, strong wrinkle resistance, uniform monofilament on the mesh surface, and flexibility
2. The gluing part of the mesh belt joint of the belt filter press is excellent in workmanship and imported latex, which is thin and not easy to fall off. The joint reed is relatively thin, strong and wear-resistant. The thickness of the interface is even and thin, and it is not easy to damage the scraper.
3. The glue used on both sides of the beer lees treatment filter belt is imported latex, which is soft and uniform, not easy to fall off.
4. The surface of the filter belt is smooth, the mud cake is easy to peel off, and the filter belt is easy to wash
5. The belt filter press is not easy to be deformed in the radial direction, no arching, and no wrinkles. Long service life It has the characteristics of acid resistance, alkali resistance, abrasion resistance, and high temperature resistance (can be operated for a long time in an environment of 180°C). Filter belt performance: The filter cake is thick and easy to peel off. Stable shape, no deformation, no deviation, no pleating, high tensile strength, strong acid and alkali resistance. Can withstand high and low temperatures. Good air permeability. The tension of the filter belt is generally controlled at 0.3-0.7MPa, and the commonly used value is 0.5MPa. The walking speed of the filter belt is 1-9m/min. Different specifications and sizes can be customized for production.
6. Polyester filter press belt is widely used in sludge dewatering in municipal sewage plants, paper mills, printing and dyeing plants, chemical plants, electroplating plants, pharmaceutical plants, food plants, ceramic plants, mining and other industries.
Model | Diameter mm | Density | Strength (N/cm) | Air permeability (m3/h) | ||
Warp | Weft | Warp | Weft | |||
16903 | 0.7 | 0.9 | 16 | 5.33 | ≥2200 | 7894±500 |
22903 | 0.5 | 0.9 | 22 | 5.33 | ≥2000 | 6800±500 |
26806 | 0.5 | 0.8 | 27 | 8.5 | ≥2100 | 5120±500 |
15905 | 0.9 | 0.9 | 17 | 4.8 | ≥4500 | 6741±500 |
151105 | 0.9 | 1.1 | 16 | 4.8 | ≥5000 | 6749±500 |
121104 | 0.9 | 1.1 | 12 | 3.8 | ≥3600 | 8610±500 |
