Model: ZGS1
Brand: NH
Code: ZGS1

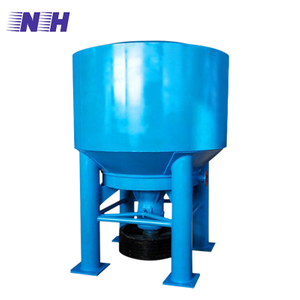

Waste paper and paper slurry board disintegrate eddy current horizontal hydraulic pulper used for paper mill

This machine is composed of a steel tank, a cutter head, a transmission mechanism, and a slag discharge mechanism. The cutter head axis is installed horizontally. The position of the good slurry outlet and the slag outlet is reasonable and does not interfere. The cutter head structure design pays attention to the disintegration effect And energy loss. At the same time, a cleaning device is designed to avoid clogging of the screen holes. This machine is easy to operate, safe to run, uniform and stable slurry quality, good water filtration performance, simple structure, convenient maintenance, low energy consumption and low investment cost. It is an ideal initial slurry crushing equipment.

Product Description

Description :

The outstanding structure of horizontal hydraulic pulper is that the disintegrating cutter adopts high-efficiency energy-saving rotor, which has low energy consumption and good disintegration effect. It is used in the paper industry to continuously or intermittently disintegrate chemical pulp and semi-chemical pulp board The main equipment for broken paper and commercial waste paper is suitable for fiber separation, slurry purification and rough selection.


Work principle:

When the cutter head rotates, the pulp, paper, and water flow in the tank are sucked along the center of the axis and thrown out of the wheel at high speed, forming a strong turbulent circulation. Due to the strong tearing of the blades and the mutual turbulence of different flow rates, a kind of The huge internal friction makes the pulp and paper sheet strong decompose and fiber separation in the wet state. At the same time, the fiber further rubs in the gap between the cutter head and the sieve plate to increase the fibrillation effect. The good slurry flows out through the outlet through the screen holes, and the impurities such as metal sand and gravel are deposited in the slag hopper and discharged regularly.


Parameter:

Model

ZGS1

ZGS

ZGS

ZGS

ZGS

ZGS

Norminal m3

1

2

3

5

8

10

Capacity T/D

3-4

6-8

9-12

15-20

24-32

30-45

Consistency %

12±2

12±2

12±2

12±2

12±2

12±2

Tank Diameter mm

1200

1550

1800

2200

2500

2800

Power KW

6-22

6-37

6-55

6-75

6-90

6-132
