Model: ZDFF0
Brand: NH
Code: ZDFF0
Availability:

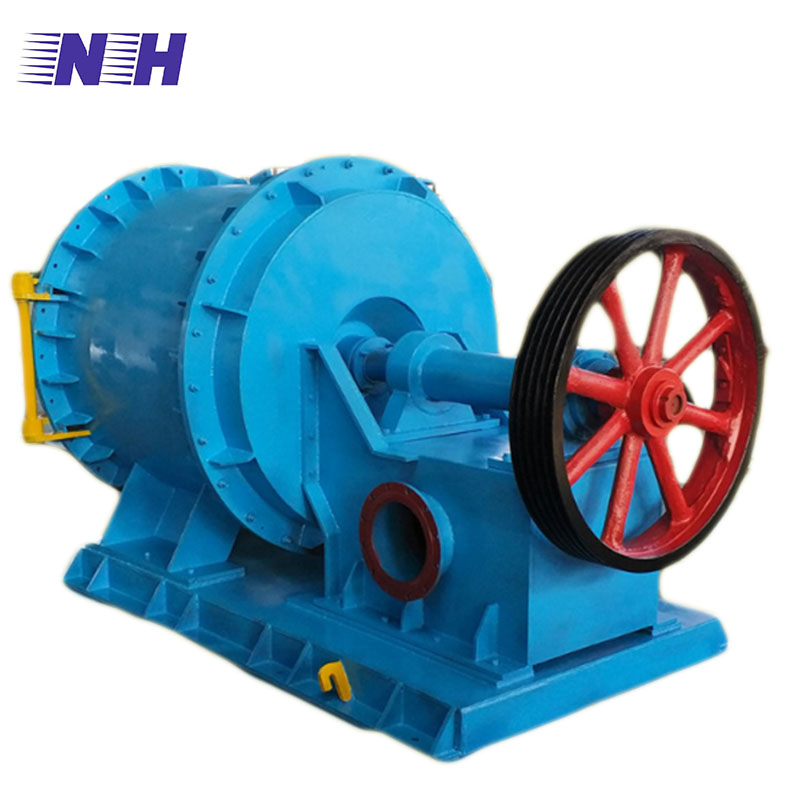

Waster paper pulp recycling single fiber separator for separating light and heavy debris paper pulp process equipment

Fiber separator used for separating the light and heavy impurities in waste paper recycling process,also making the secondary breaking of the pulp from the hydrapulper,The screen palte hole of the hydrapulper can be increased,which improves the production capacity.
Product Description

Advantages:

This product is a multi-function pulping equipment, including pulping, removing impurity, screening,and is the required equipment of middle, high-grade. It mainly has two parts: beating and pressure filtering with compact structure, the exception of impurity effects, and one for many advantages.


Feature:
1. Stable running, stable perfomance.
2. Large processing capacity.

3. Low noise, long service life,low power and high output

4. High slag discharge rate. The slag discharge rate is between 3-7%, and the equipment can be customized according to the concentration of the waste liquid


Introduction:

This product is a multi-function pulping equipment, including pulping, removing impurity, screening,and is the required equipment of middle, high-grade. It mainly has two parts: beating and pressure filtering with compact structure, the exception of impurity effects, and one for many advantages.


Parameter:

Model ZDFF0 ZDFF1 ZDFF2
Capacity(t/d) 10-20 20-40 40-70
Consistency(%) ≤3.5
Pressure(Mpa) 0.15-0.25
Speed(r/min) 1378 837 816
Diameter(mm) 320 520 550
Sieve plate Ø 3 Ø 4 Ø 6 Ø 7 difference 0.5 ladder hole series
Sieve drum Hole size: Ø1.6 Ø1.8- Ø4 Ø 5 in  0.2 difference ladder series; Seam type of 0.3- 0.7in 0.05 difference seam width series
Inlet diameter(Dg) 100 125 125
Good slurry tube(Dg) 100 125 125
Tail tube(Dg) 550 65 65
Light/heavy discharge pipe diameter(Dg) 60/60 80/125 80/125
Power 4/30KW 4/55KW 4/90KW


Detail photo:

fiber separator (4)fiber separator (3)fiber separator (5)fiber separator (1)
