You are here: Home » Paper machine & pulp equipment » Pulp equipment and spare parts » Pulp & screen equipment » D type hydropulper paper pulp process equipment with high and normal concentration for paper mill
Model: NHD0
Brand: NH
Code: NHD0

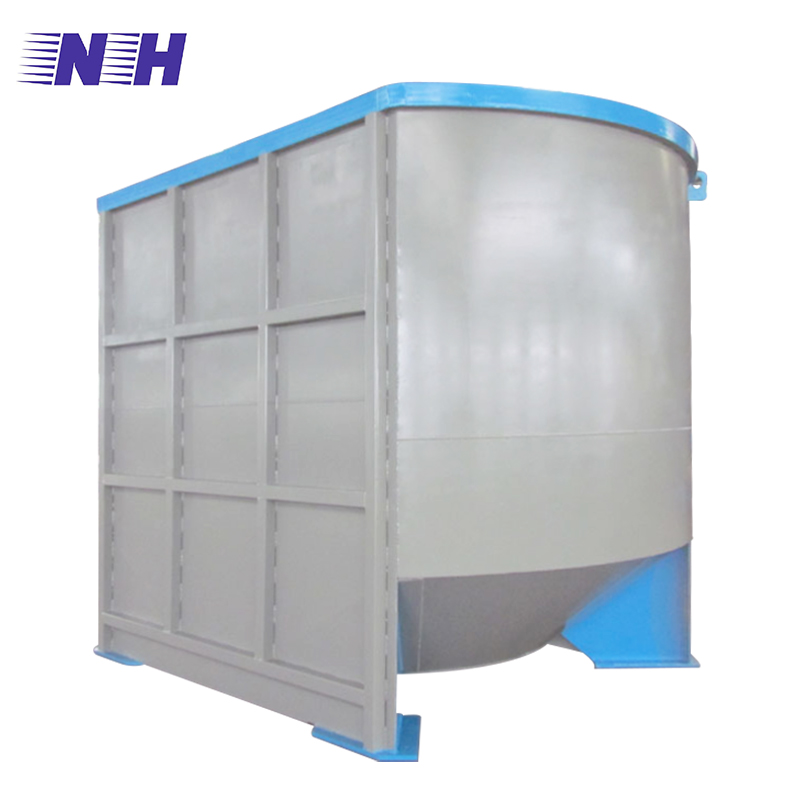

D type hydropulper paper pulp process equipment with high and normal concentration for paper mill

D Type Hydrapulper Paper Production Equipment for Paper Mill, which improves the work efficiency, and it can be used for pulping waste paper & wet strengh paper.

Product Description

Description :

D Type Hydrapulper is mainly used to crushing pulp board, wastepaper, deinking, and pulp purification. Through dissociating, it can maximum make the paper's fiber dissociating into fiber bundles or single fibers, while at the same time, it can maximize maintain impurity's shape and strength.


Feature:

1. Strong ability to disintegrate

2. Short pulping time

3. Easy operation and maintenance

4. Continuous, intermittent discharge

5. Only dissociation of the slurry without cutting


Parameter :

Model

NHD0

NHD1

NHD2

NHD3

NHD5

NHD8

NHD10

NHD15

NHD30

Volume m3

0.5

1

2

3

5

8

10

15

30

Inner diameter of the tankmm

Ф1000

Ф1200

Ф1600

Ф1800

Ф2400

Ф2500

Ф2700

Ф3500

Ф4575

Capacity t/d

3—5

6—10

12—16

18—26

26—34

45—60

60-80

80—100

150—200

Rotor diameter mm

Ф360

Ф450

Ф500

Ф540

Ф700

Ф800

Ф1000

Ф1250

Ф1650

Rotor speed r/min

700

650

490

480

450

336

320

320

280

Slurry tube diametermm

Ф80

Ф100

Ф125

Ф150

Ф200

Ф250

Ф250

Ф325

Ф400

Inlet pipe diametermm

Ф50

Ф50

Ф65

Ф60

Ф80

Ф80

Ф80

Ф100

Ф125

Pulp concentration%

2.5—4.5


Power

4/11KW

4/22KW

4/37KW

6/45KW

6/55KW

6/75KW

9/90KW

6/160KW

6/250KW

Dimension mm

2045×

2010×

2115×

2430×

3060×

3060×

3750×

5267×

7028×

1000×

1200×

1600×

1800×

2400×

2500×

2700×

3650×

4728×

1875

2300

2480

2762

3060

3200

3300

4985

5309

Product detail :

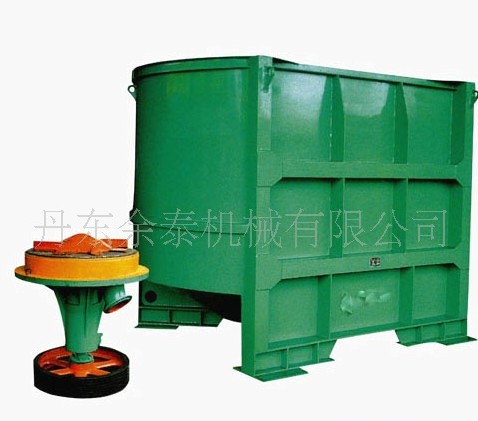

1) Tank

The tank is made by welded steel,outside of mouth is ultra high strength steel,which used to strengthen tank, in the bottom of cone have deflector, which can make the paper pulp reflux circulating. In the bottom of tank is impurity discharge outlet."D" type hydropulper has changed the way of flow ,make the material contact more quickly with the rotor ,and reduce bearting time greatly,and improve production capacity in the condition of without increasing the power and volume .

hydropulper 3

Rotor:

Rotor and outflow pulp tray locate above the bottom of the tank ,forming a low pressure area around the outflow pulp tray,to reduce the contact between impurities and cutter or sieve plate ,and prolong the service life of the cutter and seive plate

hydropulper 4

hydropulper 7hydropulper

Blade:

The design of cutter blade between cutter and sieve plate prevents the twining of waste materials like wire and weaving,and reduce running current.

hydropulper 5

Sieve plate:

Sieve plate used for screening paper pulp.

hydropulper 6

hydropulper 3hydropulper 2
