ZSC-1
NH
ZSC-1
Availability: | |
---|---|
Introduction:

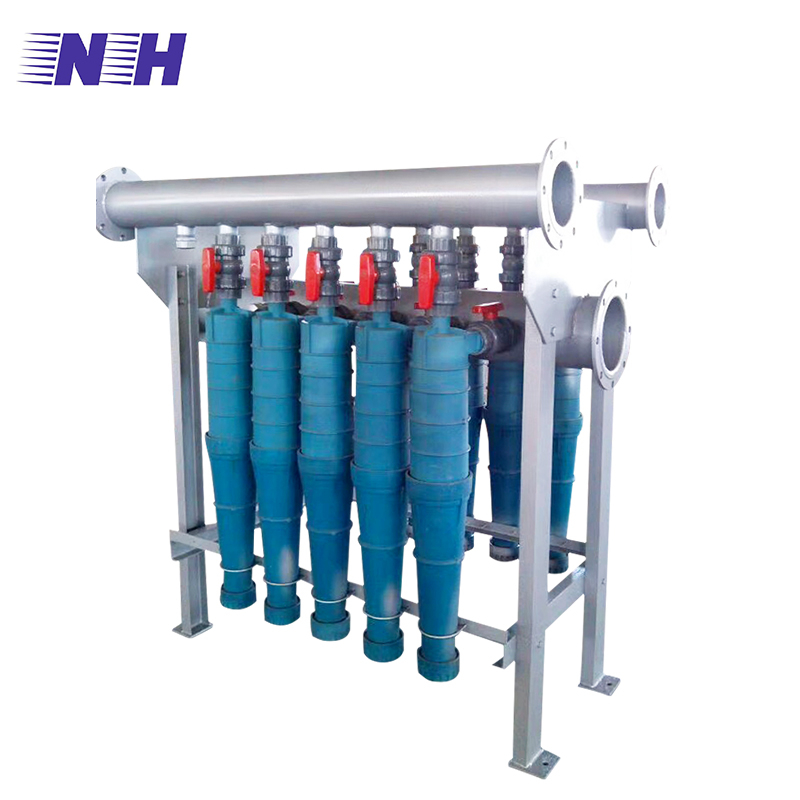

The product can be used in various slurry purification systems to remove fine and heavy impurities such as sand, iron filings and dust in the slurry, and can also be used in deinking systems to remove larger ink particles, etc.
Feature:
A . Split structure
The desander is a split structure, the whole desander can be divided into 3~4 sections, which is easy to disassemble and replace
B Different slagging methods
The heavy-weight cleaner can choose different slagging methods according to the different needs of users: pressure type slagging or open type slagging to adapt to the user's working environment.
C Ceramic wear-resistant slag removal nozzle
The neck of all centrifugal cleaners is the place where the tangential speed is the highest and the wear is the most concentrated. The lower part of the cone of the heavy-weight cleaner adopts ceramic wear-resistant nozzles, which not only ensures a stable discharge rate and prolongs the service life. The company provides ceramic slag removal nozzles in different forms and specifications according to different slagging methods and different needs of users.
Parameter:
Single throughput:380~450 L/min
Pulp pressure:200~400 kPa
Pressure drop:140~175 kPa
Pulp concentration of inlet: 0.6~1.0%
Single stage volumetric discharge rate: 10~12%
Inlet diameter:DN50
Good pulp caliber:DN50
Slag discharge caliber:φ4、φ6、φ8、φ10、φ12、φ14、φ16
Parameter:
Model | ZSC-Ⅰ | ZSC-Ⅱ | ZSC-Ⅲ | ZSC-Ⅳ | ZSC-V | ZSC-Ⅵ | ZSC-Ⅶ | ZSC-Ⅷ | ZSC-Ⅸ | ZSC-Ⅹ |
Capacity(t/d) | 10-20 | 20-40 | 40-60 | 50-70 | 60-80 | 80-110 | 100-130 | 130-200 | 200-280 | 300-400 |
Slurry consistency (%) | 0.8-5 | |||||||||
Pressure of inflow pulp(mpa) | 0.15-0.35 | |||||||||
Slurry pressure(mpa) | O.1-0.25 | |||||||||
Flush water pressure(mpa) | Pressure of inflow pulp+0.02MPa |
