You are here: Home » Paper machine & pulp equipment » Pulp equipment and spare parts » Pulp equipment spare parts » Paper mill papermaking industries process energy-saving non-clogging pulp pump and industrial urban water supply and drainage
Model: 80XWJ25-12.5
Brand: NH
Code: 843999

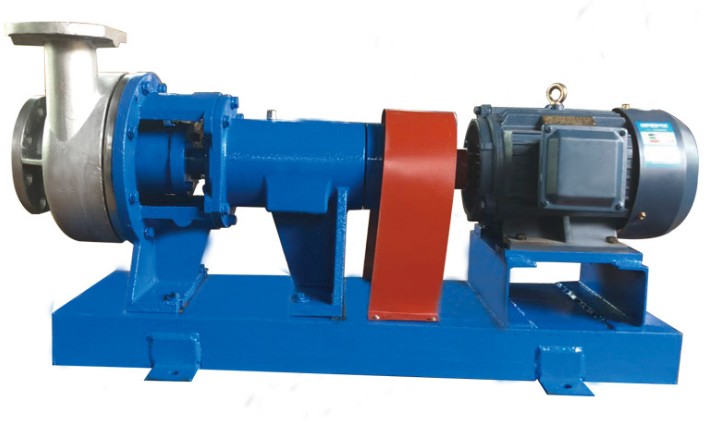

Paper mill papermaking industries process energy-saving non-clogging pulp pump and industrial urban water supply and drainage

Pulp pump can be widely used in light industry and paper industry where the temperature is lower than 110℃ and the concentration is lower than 6%. It can also be used in industrial and urban water supply, drainage and other occasions.

Product Description

Feature:

The non-clogging pulp pump is a new and energy-saving pulp pump. After actual use, it has the characteristics of high efficiency, no or less leakage, good anti-clogging performance, stable operation, high reliability, and compact structure. It is mainly reflected in the following aspects: semi-open or full-open impeller, adjustable wear plate and front side clearance of impeller, shaft seal mainly adopts mechanical seal and selection of high-precision bearings (level D accuracy) and high-quality bearing materials, etc


Main structure:

1. XWJ type pulp pump is a single-stage single-suction cantilever structure, mainly composed of pump body, impeller, pump cover, wear plate and suspension parts;

2. From the motor side, the motor rotates clockwise, and the pump sucks in axially and discharges radially (in the middle);

3. The pump has a rear-opening structure, so there is no need to disassemble the inlet and outlet pipelines during maintenance;

4. The pump shaft is supported by two high-precision rolling bearings and is lubricated with thin oil (20# oil);

5. The shaft seal adopts two types of mechanical seal or packing;

6. The clearance between the wear plate and the front side of the impeller can be adjusted by adjusting the screw to maintain the high efficiency of continuous operation of the impeller;

7. The pump and motor are directly driven by a pin coupling.


Application:

The non-clogging pulp pump can be widely used in light industry and papermaking industries where the temperature is lower than 110℃ and the concentration is lower than 6%. It can also be used in industrial and urban water supply and drainage.


Technical parameter :

model

Flow m3/h

Left m

Rotate speed r/min

Power and motor

KW

80XWJ25-12.5


25

12.5









1450

Y100L1-4/2.2


A

20

10

Y90L-4/1.5

80XWJ25-20


25

20

Y100L2-4/3


A

20

16

Y100L1-4/2.2

80XWJ50-20


50

20

Y132S-4/5.5


A

45

18

Y112M-4/4


B

40

16

Y112M-4/4

80XWJ50-32


50

32

Y160M-4/11


A

40

26

Y132S-4/5.5

80XWJ100-20


100

20

Y160M-4/11


A

90

18

Y132M-4/7.5


B

80

16

Y132M-4/7.5


Detail photo :

pulp pump (1)pulp pump (10)pulp pump (18)pulp pump (21)pulp pump (19)
